Wind Energy Solutions
HAWART provides a unique and comprehensive range of specialty machines for the global wind energy industry, supporting the production process as well as the handling, transport, and installation of wind blades, along with additional customer applications beyond WTG blades.
Mould Turning Solutions
HAWART produces WTG blade mould turning solutions for OEMs and mould producers, supporting restricted (Hinge 800 low turning) and standard bay height configurations (Hinge 800 high turning).

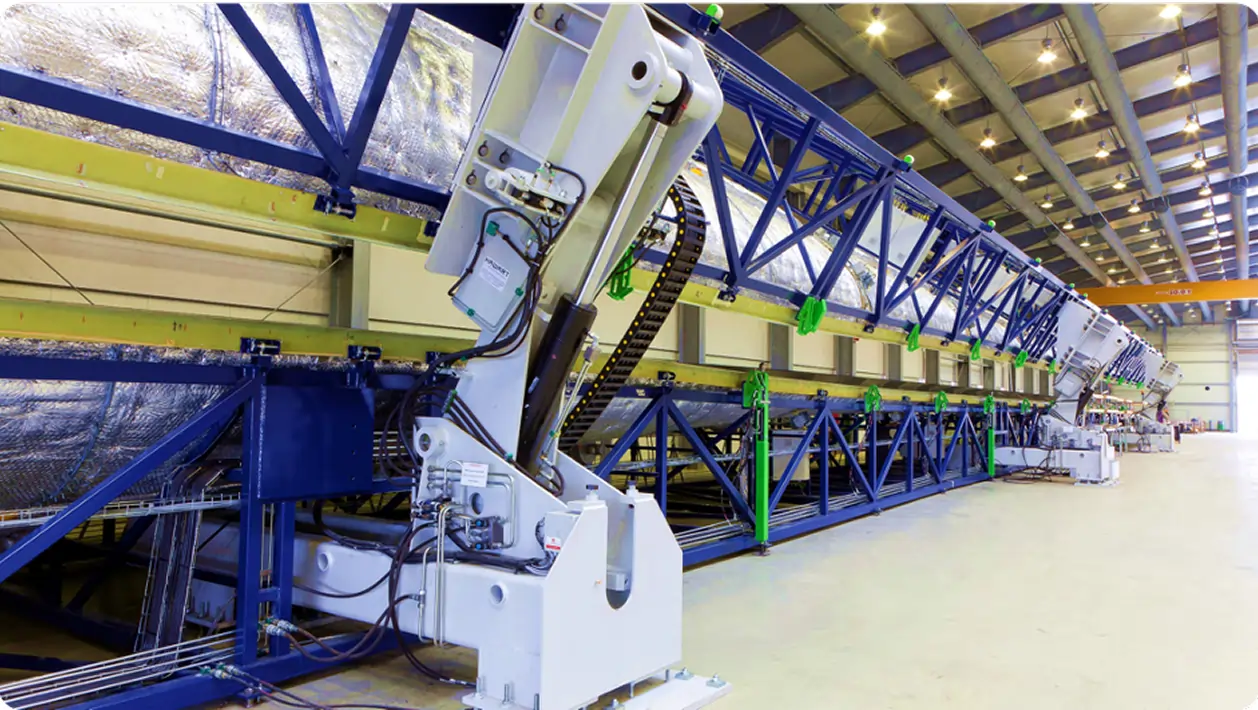

HINGE 800 LOW TURN
The HINGE 800 Low Turn is designed for applications with limited installation height and compact system integration. An additional pivot point enables controlled rotation while minimizing overall turning height.
Each hinge is equipped with an individual power pack and electrical control unit, providing precise torque control and reliable operation. The system is developed for low-height production and assembly environments where a compact rotation geometry is essential.
Nominal Torque
800 kNm each
Power Supply
Individual power pack and electric control box per hinge
Dead Weight
9,890 kg
Dimensions
2483 × 2460 × 6778 mm
Vertical Stroke
max. 490 mm
HINGE 800 HIGH TURN
The HINGE 800 High Turn is designed for applications requiring larger turning movements and an increased vertical stroke. The system supports vertical stroke adjustment from 100 mm to 150 mm and incorporates a locking mechanism to ensure stable positioning throughout the defined movement range.
The modular and extendable system design provides direct access to moving components.
Nominal Torque
800 kNm each
Power Supply
Individual power pack and electric control box per hinge
Dead Weight
7,400 kg
Dimensions
3005 × 2200 × 1800 mm
Vertical Stroke
max. 150 mm
Your Benefits
HAWART offers a unique hinge solution for all WTG blade sizes and factory bay height configurations. Hinges can be ordered new, while also offering strong long-term total cost of ownership benefits through refurbishment and reinstallation on new moulds.
HINGE 800 LOW TURN
Turning height reduction by additional pivot point- Reuse option
- Torque beam integrated
- Designed for low height production bays
- Flexible vertical stroke defined by separate unit
HINGE 800 HIGH TURN
- Less moving components
- Easy access for maintenance
- Reuse option
- Extendable system
- Patent pending
- Reduced error potential through innovative locking system
- Increased vertical stroke from 100 mm to 150 mm
Blade Production Solutions
HAWART’s expert-designed shear web gantry systems ensure consistently high-precision web bonding and outstanding blade bonding line quality. We support onshore blades and complex offshore multi-web blade bonding applications, including complete and segmented web solutions for off-mould and in-mould bonding.
Onshore Web Gantry
The HAWART Onshore Web Gantry (WG) is designed for the precise and controlled transfer and placement of rotor blade webs from the Web Floor Station (WFS) to the blade mould. Inside the mould, the Onshore WG is positioned onto dedicated interfaces (either a hydraulic lifting/lowering system, or fixed receivers) according to the nominal web placement. This ensures the webs are held in an ultra-precise position throughout the bonding process, resulting in repeatable, highest quality blades.
Key Facts
Safe and Comfortable Handling for Production
Easily Upgradable for Future Blades
Highest Positioning and Repeat Accuracy
Customizable for Blade-Specific, Local or Customer Requirements
Modular Design with Flexible Options and Accessories
Your Benefits
Quick and Reliable Installation with Pre-Assembled Parts
Ultra-Precise Web Positioning, High Accuracy
Fast and Safe Web Handling Process
Smart Workshop Footprint – Efficient Performance within Limited Space
Future-Proof Modularity, High Degree of Reusability
Configuration Options for Onshore Web Gantry
Full Sensor Detection
Employee Card Access System
Remote Access
Swivel Function for Leg Support
Active Pull
Semi Automatic Hooks
C-Cut Devices
Offshore Web Gantry
The HAWART Offshore Web Gantry (WG) is used to transport one or several webs simultaneously from the Web Floor Station (WFS) to the blade mould. Inside the mould, the Offshore WG is positioned onto dedicated interfaces (either a hydraulic lifting/lowering system, or fixed receivers) according to the nominal web placement. This ensures the webs are held in an ultra-precise position throughout the bonding process, resulting in repeatable, highest quality blades. The Offshore WG is capable of handling multiple webs and is designed to bond web segments either off-line in the WFS or directly in-mould using the integrated gantry system.
Key Facts
- Safe and Comfortable Handling for Production
- Easily Upgradable for Future Blades
- Highest Positioning and Repeat Accuracy
- Customizable for Blade-Specific, Local or Customer Requirements
- Modular Design with Flexible Options and Accessories
Your Benefits
- Quick and Reliable Installation with Pre-Assembled Parts
- Ultra-Precise Web Positioning, High Accuracy
- Fast and Safe Web Handling Process
- Smart Workshop Footprint – Efficient Performance within Limited Space
- Future-Proof Modularity, High Degree of Reusability
Configuration Options for Onshore Web Gantry
Full Sensor Detection
Employee Card Access System
Remote Access
Swivel Function for Leg Support
Active Pull
Semi Automatic Hooks
C-Cut Devices

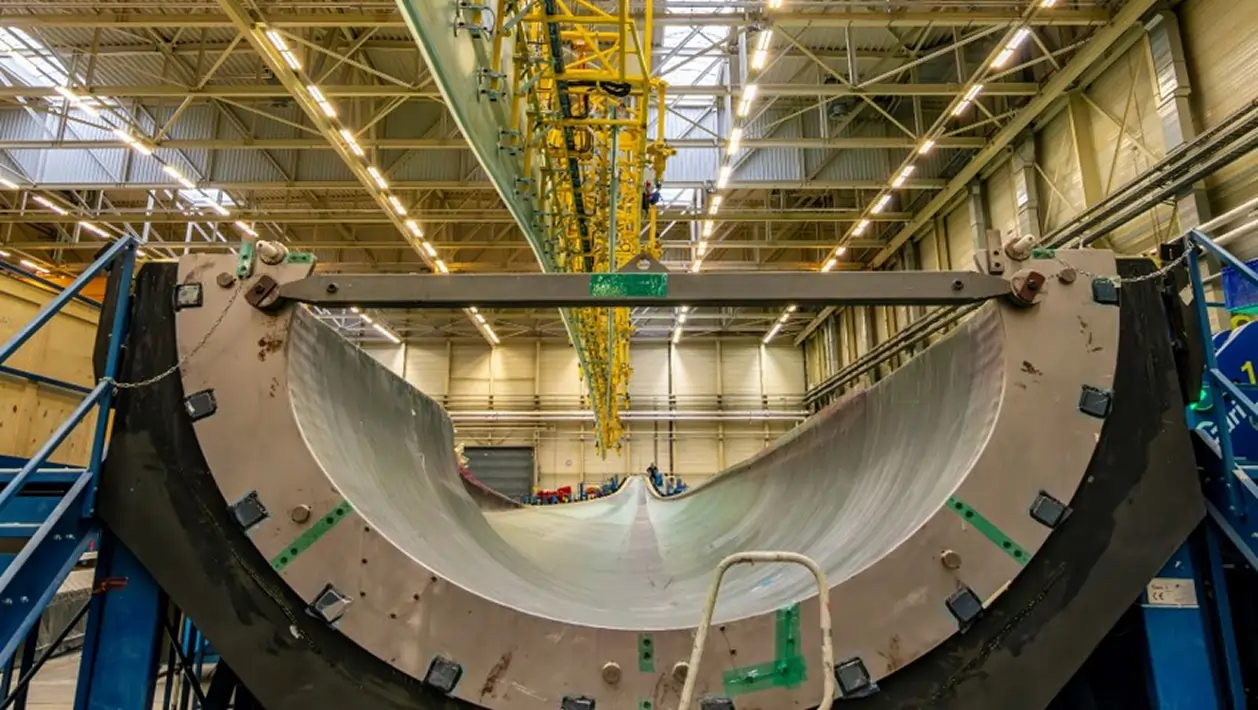

Available Accessories for Blade Production
HAWART offers a wide range of specialty machines and fixtures for blade production and blade component handling, supporting our customers throughout the entire blade manufacturing process.
- Mobile Trestles
- Lifting/Lowering Systems
- Trailing Edge Insert Tool
- Main Web Lifter
- Trailing Edge Web Lifter
- Carbon Lifting Beam
- Installation Tool Root Platform

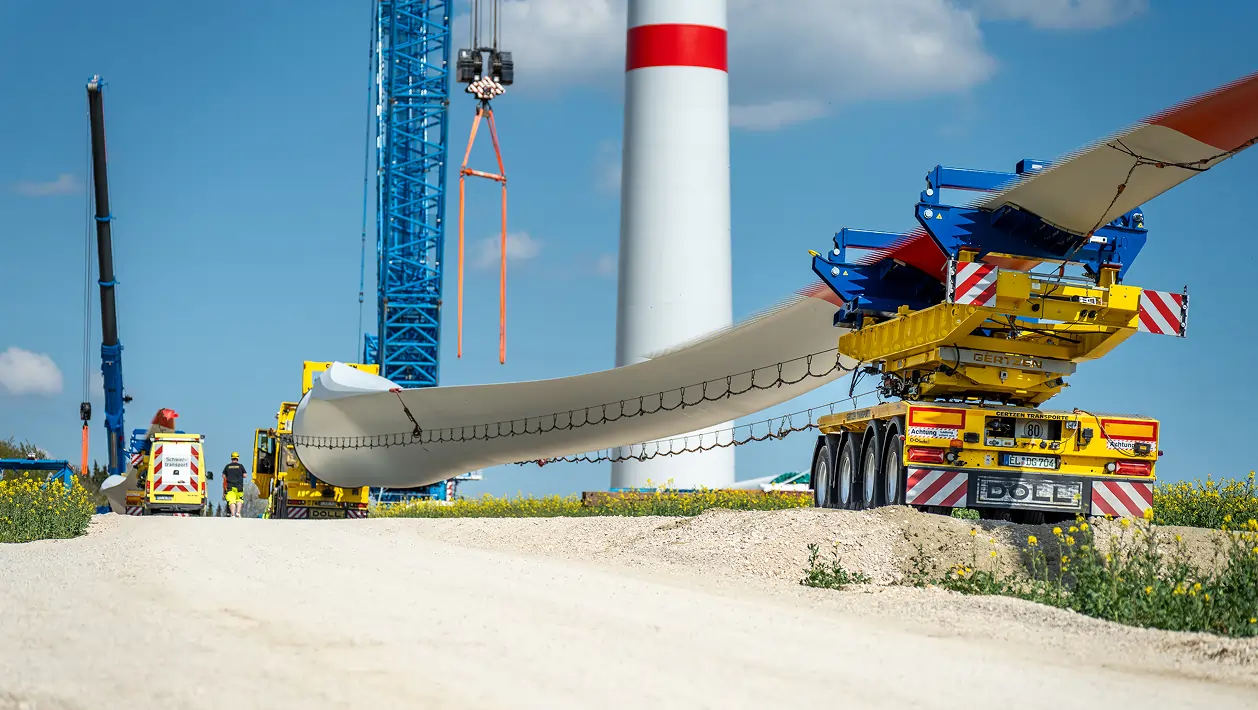

Blade Transport Solutions
HAWART is an expert company in supporting the road transport of wind blades with blade-specific configurations. We design and configure blade interfaces, torsion-minimizing tandem and pendulum frames, and lifting adapter systems to manage challenging road conditions and transport constraints such as height and permissible width.
HAWART is a leading developer and supplier of custom rotor blade transport solutions, including interfaces for lifting adapters, tandem and pendulum frames for self-steering trailers in road transportation. With our pendulum and tandem frame solutions, torsional loads on the blade are minimized during transportation - significantly reducing stress on and potential damage of the blade. The HAWART system provides an optimized low-height geometry, minimizing the overall transport height for safer and more efficient road handling. Our transport solutions can be seamlessly integrated into existing transport systems from manufacturers such as DOLL, Faymonville, Goldhofer, Scheuerle and others.
Key Facts
Proven System- Modular Design
- Safe Handling
Certified Lifting Equipment
Robust Construction
Your Benefits
Attractive Total Cost of Ownership
Factory through OEM Design Approval
Optimized Logistics Processes
Interfaces Developed and Approved in Cooperation with the OEM
Customized on Existing Transport System
Designed for Compatibility Across Different Rotor Blade Types
Transport and Storage Racks
HAWART has over 30 years of experience in designing and producing WTG transport and lifting systems, with strong expertise in these critical transport and lifting applications.
Design, prototyping, and small-series manufacturing are carried out in Germany, complemented by competitive series production through selected international partners.
HAWART designs and manufactures transport and storage racks for rotor blades, tower segments, monopiles and other wind turbine components. Engineered for both onshore and offshore use, our systems feature robust, stackable constructions that minimize footprint and logistics costs while ensuring certified safety. From blade and tower frames to heavy-duty monopile racks up to 1200t, all solutions are developed, prototyped and produced under one roof – tailored precisely to customer requirements and available with third-party certification on request.
Key Facts
- Proven System
- Customized to Your Requirements
- Safe Handling
- Compliant with European Machinery Directive (Standard EN13155)
- Robust Construction
Your Benefits
- Attractive Total Cost of Ownership
- Third Party Certification on Customer Request
- Optimized Logistics Processes
- Development, Prototyping and Production Under One Roof
- Service and Inspection According to Common Norms and Rules
- Designed for Compatibility Across Different Rotor Blade Types
Blade Lifting Solutions
HAWART offers blade lifting and installation tools, complemented by global maintenance services for both initial installation and blade servicing.
Building on our established SBI series, we have expanded our portfolio with the Universal Blade Installation Tool (U-BIT) series, including the proven U-BIT 27.5 (50+ units sold) and, from 2026, the new U-BIT 32.

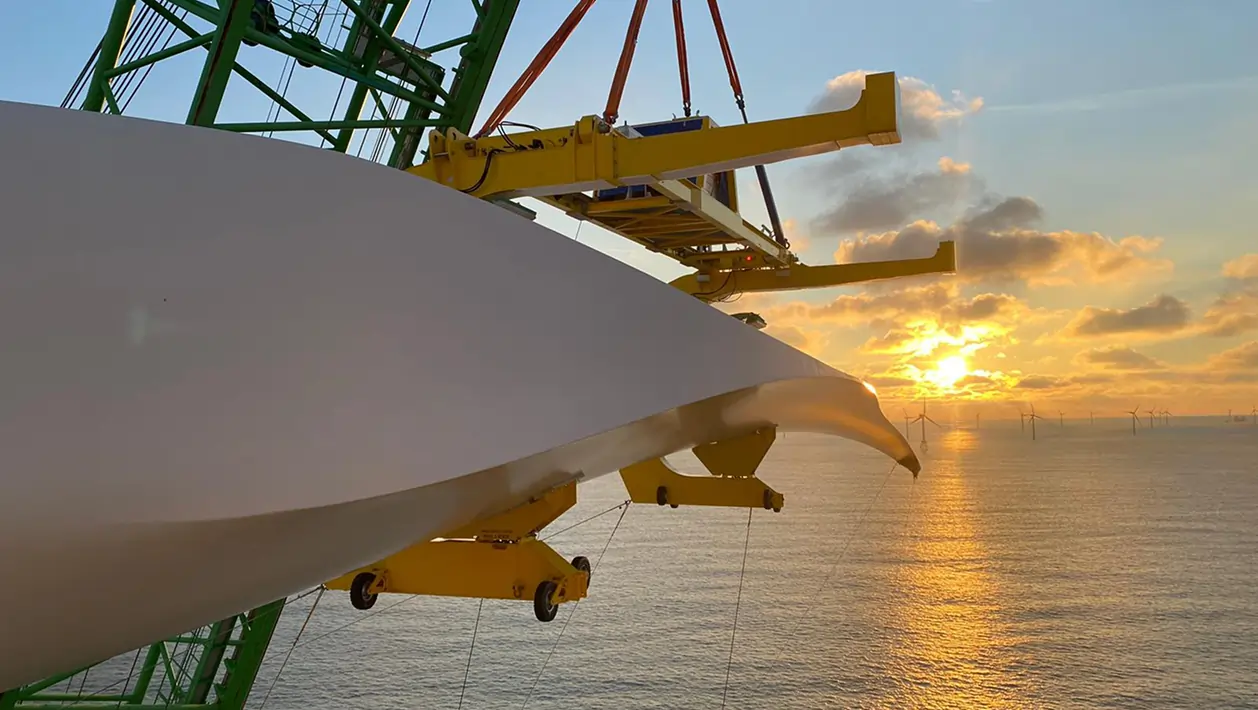

Universal Blade Installation Tool
The HAWART U-BIT rotor blade lifting yoke was specifically developed to ensure the safe, precise, and controlled assembly and disassembly of rotor blades on modern wind turbines. With its robust design, intelligent control technology and user-friendly handling, our U-BIT sets new standards for reliability and efficiency in rotor blade handling. Designed for quick assembly and containerized transport, the system is easy to deploy worldwide and folds flat for compact storage.
Key Facts
- Compliant with European Machinery Directive (Standard EN13155)
High Load Capacity- Modular Design
- Safe Handling
- Robust Construction
Onshore and Offshore Application
Your Benefits
- Long Term Cost Effectiveness Thanks to High Load Capacity and Ease of Maintenance
Increased Safety when Handling Large Rotor Blades
Optimized Logistics Processes
Reduction in Set-Up and Working Times
U-BIT 27,5t
The U-BIT 27.5t is HAWART’s proven solution for the safe and controlled assembly and disassembly of rotor blades. In service for several years and with more than 50 units delivered worldwide, it has demonstrated reliable performance across a wide range of onshore wind projects.
Its robust design, precise blade handling and efficient assembly process make the U-BIT 27.5t a trusted tool for demanding installation environments.
Technical Data
Working Load Limit (WLL)
Onshore/offshore - stackable-third party certified and more
Tare Weight
13,6t
Angle
Tilting: +/-5°
Max. Allowable Windspeed
12 m/s
Packaging for Transport
1 x 40ft open tophigh cube container
Package Weight
18,7t
Assembly Time
+/- 50 min.
Suitability for Multiple Blades
By interchangingblade seats
Assembly and Storage
Tool can be folded flat on the ground
U-BIT 32t (Q2/2026)
The U-BIT 32t represents the next step in the evolution of the U-BIT product family. Building on the established concept of the U-BIT 27.5t, it is designed to accommodate increased blade weights and enhanced positioning requirements.
The system features extended pitching capabilities, enabling greater control during blade installation on modern wind turbines. Currently available as a prototype, the U-BIT 32t is scheduled for market launch in 2026.
Technical Data
Working Load Limit (WLL)
32t
Tare Weight
22t
Angle
Tilting: +/-5°
Pitching: +/-5°
Max. Allowable Windspeed
12 m/s
Packaging for Transport
1 × 40ft and 1 x 20ft open top high cube container
Package Weight
< 26t (40ft) &< 12t (20ft)
Assembly Time
+/- 90 min.
Suitability for Multiple Blades
By interchanging or universal blade seats
